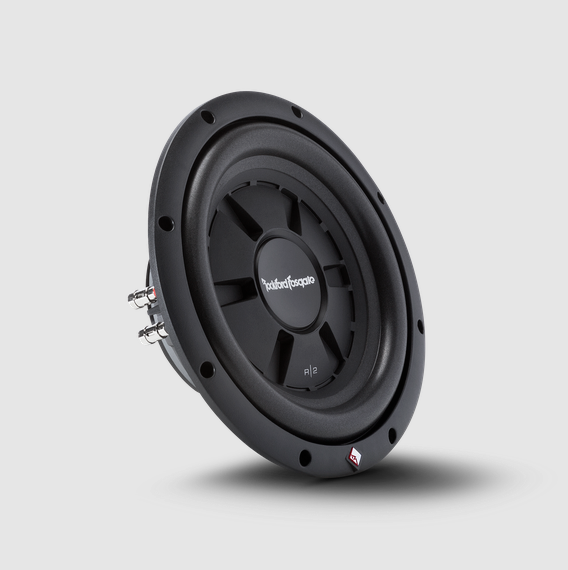

Subwoofer plat R2S D2-10

Description

Subwoofer plat 25cm 200WRMS double bobine 2Ohms

CEA-2031 Compliant:

Size:10"

Subwoofer Type:Shallow

Power Handling (Watts RMS):200 Watts RMS
400 Watts Max

Nominal Impedance:Dual 2-Ohm

Voice Coil Type:Dual Voice Coil

Voice Coil Diameter:2" (50 mm)

Magnet Weight (oz):45 oz. 1.28 kg.

Speaker Connector:Dual 12 AWG compression

Fs (Hz):38.1

Re (Ohms):3.80

Le (mH):4.2

Qms:8.00

Qes:0.74

Qts:0.68

Vas (Liters):20.4

Sd (cm2):333

SPL (dB @ 1w/1m):83

Xmax (mm):8.0

Sealed Box Volume (Vb):0.7 cu. ft. (19.8 Liters)

Vented Box Volume (Vb):1.4 cu. ft. (39.6 Liters)

Woofer Displacement:0.037 cu. ft. (1.05 Liters)

Cutout Diameter:9.125 in. (232 mm)

Mounting Depth:3.417 in. (86 mm)

Shipping Weight: 10.588 Lbs. (4.80 kg.)
