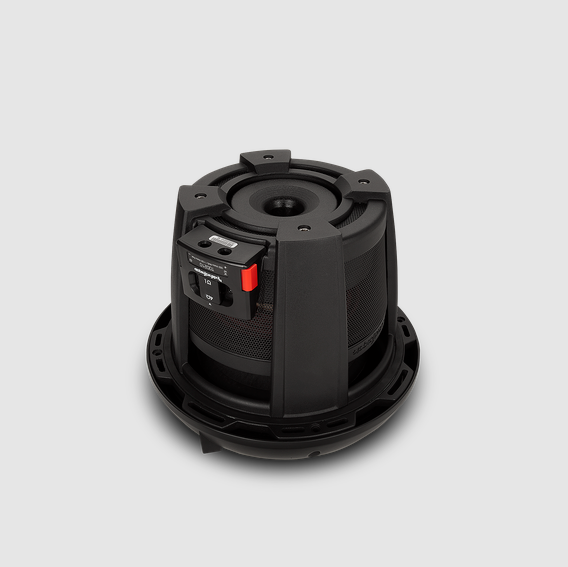

Subwoofer T0D2-10

Description

Subwoofer 25cm 550WRMS double bobine 2 ohms

CEA-2031 Compliant:

Size:10"

Subwoofer Type:Standard

Power Handling (Watts RMS):550 Watts RMS
1100 Watts Max

Nominal Impedance:Dual 2-Ohm

Voice Coil Type:Dual Voice Coil

Voice Coil Diameter:3" (75.5 mm)

Magnet Weight (oz):93 oz. (2.64 Kg)

Speaker Connector:Compression Terminal

Fs (Hz):30.5

Re (Ohms):3.50

Le (mH):5.5

Qms:5.50

Qes:0.56

Qts:0.51

Vas (Liters):16.3

Sd (cm2):320

SPL (dB @ 1w/1m):81.1

Xmax (mm):14

Sealed Box Volume (Vb):0.75 cu. ft. (21.2 Liters)

Vented Box Volume (Vb):1.5 cu. ft. (42.4 Liters)

Woofer Displacement:0.078 cu. ft. (2.2 Liters)

Cutout Diameter:9.125 in. (232 mm)

Mounting Depth:6.50 in. (16.51 mm)

Shipping Weight:24.7 Lbs. (11.2 kg)
