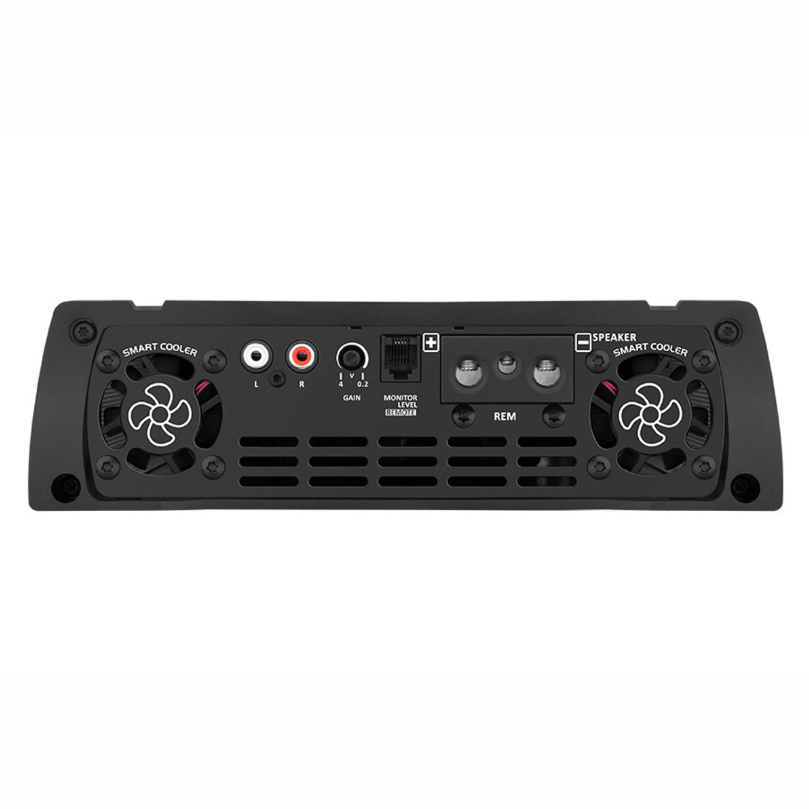

CHIPEO T12000

1 Ohm VERSION

Nominal Power @12.6VDC

1 Ohm: 12300W RMS
2 Ohms: 7626W RMS

Nominal Power @13.8VDC
1 Ohm: 13000W RMS
2 Ohms: 8060W RMS

Nominal Power @14.4VDC
1 Ohm: 13300W RMS
2 Ohms: 7980W RMS

VERSION 2 Ohms

Puissance de sortie à 12,6 V CC

2 Ohms : 12 300 W RMS
4 Ohms : 7 626 W RMS

Puissance de sortie à 13,8 V CC
2 Ohms : 13 000 W RMS
4 Ohms : 8 060 W RMS

Puissance de sortie à 14,4 V CC
2 Ohms : 13 300 W RMS
4 Ohms : 7 980 W RMS

Number of Channels 1

Input Sensitivity 220mV ~ 4V Rms

Signal to Noise Ratio >90dB

Frequency Response 5Hz ~ 5KHz (-3dB)

Efficiency 81% | 86%

protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection

Minimum Supply Voltage 9VDC

Maximum Supply Voltage 17VDC

Consumption at rest 5.60A

Maximum music consumption 588A | 554A

Maximum consumption in sinusoidal signal 1176A | 1108A

Dimensions (WxHxD) 228 x 64 x 532mm

Weight 16.72lb ( 7.60Kg)
