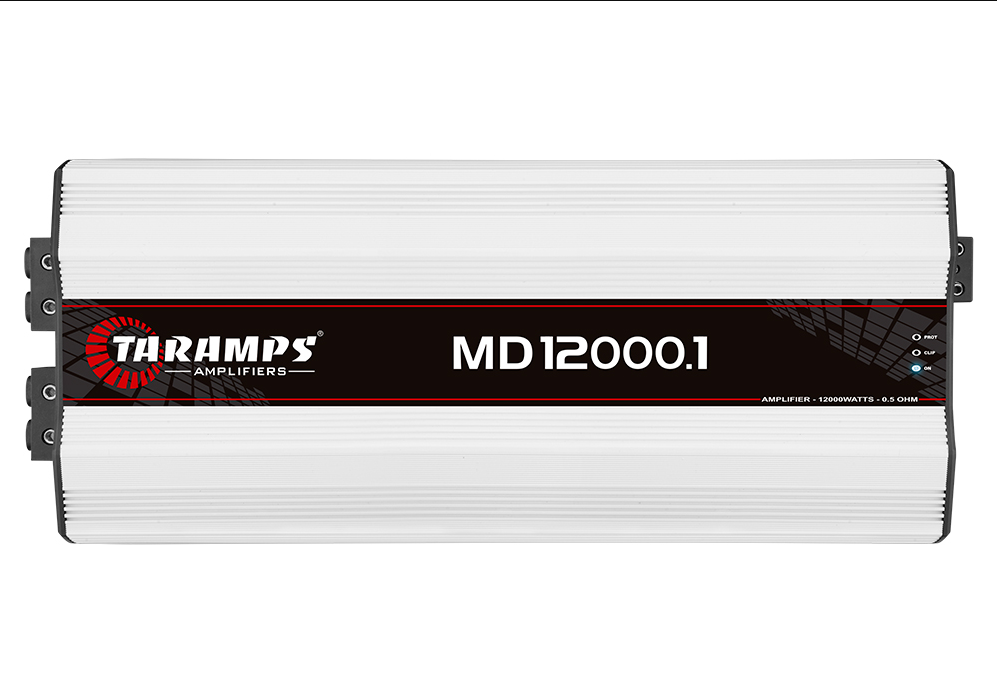

Taramps MD12000.1

Number of Channels : 1

Nominal Power @12.6VDC

0.5 Ohm: 12000W RMS
1 Ohm: 7200W RMS

Input Sensitivity 220mV

Signal to Noise Ratio >95dB

Frequency Response 10 Hz ~ 5 kHz (-3dB)

Crossover high pass (HPF) 10 Hz ~ 90 Hz (-12dB/8th) Variable

Crossover low pass (LPF) 90 Hz ~ 5 kHz (-12dB/8th) Variable

bass boost Freq.: 35 Hz ~ 55 Hz

Boost: 0 ~ 10dB

Efficiency 79%

Output Impedance 0.5 Ohm

protection system Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection

Minimum Supply Voltage 9VDC

Maximum Supply Voltage 16VDC

Consumption at rest 3.6A

Maximum music consumption 602.5A

Maximum consumption in sinusoidal signal 1205A

Dimensions (WxHxD) 228 x 70 x 550mm

Weight 17.52 lbs (7.95 kg)
